Split Shipments and Partial Captures: Handling Authorization Expiry, Reauthorization, and Misuse Fees in E-Commerce

An e-commerce order does not always become one shipment. A $300 order might leave the warehouse as a $120 parcel today and a $180 parcel several days later.

For merchants using partial capture split shipment payments, the payment workflow needs to follow those fulfillment events without overcharging the customer, letting the original authorization age beyond usable limits, or creating unmatched transactions that finance cannot reconcile.

For most split-shipment implementations, the operating model is: authorize the order at checkout, capture only the amount associated with goods being fulfilled where the payment stack supports it, monitor the remaining authorization, and obtain a new authorization for a later shipment when the original authorization can no longer validly support that capture.

The exact lifecycle depends on the card network, processor/acquirer, gateway, transaction type, region, merchant category, and platform configuration. Authorization timing should therefore be read from current rules and transaction data rather than hard-coded from a generic industry number.

There is also an important terminology boundary:

Partial authorization means the issuer approves less than the amount the merchant requested.

Partial capture means the merchant settles less than an amount that has already been authorized.

Those are different mechanisms. This guide is about the second one: one order → authorization → one or more shipment events → partial captures → possible reauthorization → final reconciliation.

Merchants that need a broader refresher on the payment lifecycle can review how e-commerce credit card processing connects authorization, capture, settlement, refunds, and gateway activity.

How Partial Capture Works for Split Shipments

A partial capture separates the commercial value of an order from the value currently ready to settle.

Consider this order:

Shipment stage	Authorized amount	Captured amount	Remaining order amount
Checkout	$300	$0	$300
Shipment 1	$300 original authorization	$120	$180
Shipment 2	Remaining valid authorization or new authorization	$180	$0

At checkout, the merchant requests authorization for $300. The issuer approval reserves spending capacity but does not necessarily move the funds to the merchant.

When the first products worth $120 leave the warehouse, a system with genuine multi-capture support can submit a $120 capture while preserving the portion of the authorization needed for the later shipment.

When the $180 balance ships, the merchant may capture that amount against the remaining authorization if it is still valid and if the processor/gateway supports another capture. Otherwise, the merchant needs an appropriate new authorization before fulfilling the second parcel.

Stripe, for example, documents a multicapture capability specifically designed to capture a PaymentIntent multiple times up to the authorized amount, including orders fulfilled through multiple shipments. Stripe also warns that network requirements vary and that its multicapture feature has account and payment-method eligibility restrictions.

Adyen likewise describes multicapture as one authorization followed by multiple separate captures and uses online retail shipments as a representative use case. Its documentation states that multiple partial capture functionality may need to be enabled and is not available for every payment method.

Partial capture is not partial authorization

The terminology matters because confusing the two can produce the wrong engineering design.

Mechanism	What changes	Typical use case
Partial authorization	Issuer approves less than the requested authorization	Available balance is insufficient for the requested amount
Partial capture	Merchant settles less than an approved authorization	Some goods ship before the rest
Split tender	Customer uses more than one payment source	Gift card plus credit card
Multiple captures	Merchant makes several settlements against one authorization where supported	One order ships in several parcels
Reauthorization	Merchant obtains another authorization when the prior one no longer supports fulfillment	Backordered item ships after the original authorization lifecycle

A store processing split shipments should therefore not treat an issuer’s partial approval logic as its fulfillment-based capture logic.

Why Capture-on-Shipment Matters for Physical Goods

A reliable capture on shipment configuration connects payment settlement to an actual fulfillment event rather than merely to checkout.

For physical-goods merchants, that is often the operationally appropriate model where network, acquirer, merchant agreement, accounting policy, or customer expectations require payment to correspond to shipment. It also prevents a common failure pattern: charging the entire order while a substantial portion remains backordered.

Charging before fulfillment can create several problems. A customer may see a posted charge for merchandise that has not left the warehouse. A subsequently canceled product then requires a refund rather than simply reducing the remaining authorization.

Support agents receive more “Where is the item I already paid for?” contacts, and finance has to explain why the captured amount exceeds shipped merchandise.

That does not mean every physical-goods transaction worldwide is subject to one identical rule. Merchant agreements, payment methods, card networks, advance-payment arrangements, regional rules, and product models differ.

Visa currently publishes specific split-shipment merchant material in its Merchant Resource Library, demonstrating that split shipments are a recognized card-absent processing scenario rather than an unusual gateway trick.

The operational rule for the merchant is therefore more useful than a blanket statement:

Fulfillment software should not create a capture merely because an order exists. It should create the appropriate payment action when the goods associated with that amount actually reach the configured fulfillment milestone.

For a merchant operating multiple warehouses, this requires centralized coordination. Warehouse A should not independently capture $200 while Warehouse B simultaneously calculates another capture without checking the order-level payment ledger.

A good sequence is:

Order authorized → fulfillment created → shippable amount calculated → authorization checked → capture requested → capture confirmed → remaining authorized/order amount updated.

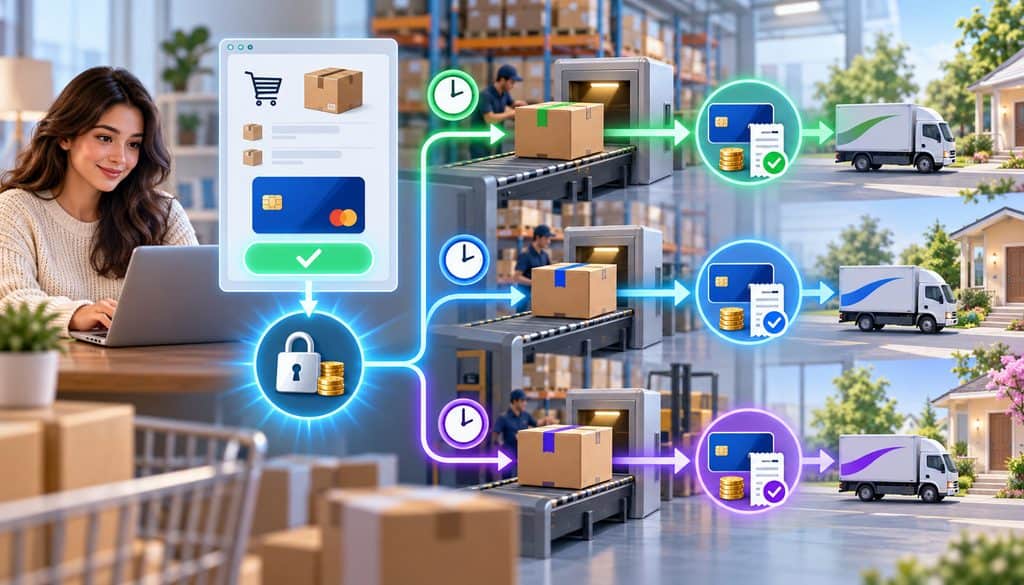

Authorization vs. Capture in a Split Shipment

An authorization and a capture have different jobs.

Authorization asks the issuer whether the payment can be approved and reserves capacity against the customer’s payment account.

Capture tells the payments chain to move some or all of the approved transaction into clearing and settlement.

This separation becomes particularly important with split fulfillment because approval at checkout does not mean the merchant can rely on that authorization indefinitely.

For a $300 order:

Monday, checkout: authorize $300.

Tuesday, shipment 1: capture $120.

Later: determine whether the remaining $180 can still be captured under the original authorization.

That final determination cannot safely be made from the original approval alone. The merchant needs to know the authorization’s remaining amount, timing, processor state, and multicapture capability.

The payment gateway may also expose a transaction state such as requires_capture, authorized, open, or another provider-specific status. Those labels should not be treated as substitutes for network or processor rules.

This is why merchants evaluating a provider should investigate its actual authorization and capture model, not simply whether its marketing page says it supports “manual capture.”

A broader framework for choosing a cloud payment provider can also help when comparing integration controls, transaction visibility, capture behavior, and operational support.

Authorization Expiry in E-Commerce

Authorization expiry ecommerce workflows are difficult precisely because an authorization does not have one universal expiration period.

Visa illustrates why merchants should not hard-code one authorization window across every transaction. Its published authorization and reversal guidance identifies different maximum processing timeframes for different transaction environments, including card-absent transactions, while also maintaining separate rules for categories such as lodging, rentals, and other eligible transactions.

Merchants should therefore check the applicable Visa authorization and reversal processing requirements together with their acquirer’s requirements before deciding how long an authorization can support a delayed shipment.

The permitted processing timeframe can vary by network, transaction type, region, merchant category, card-present versus card-absent status, whether an extended-authorization feature is properly used, and the processor’s implementation.

Visa’s April 2026 public rules illustrate why merchants should avoid using a single generic number. Visa currently lists a general maximum processing timeframe of 10 calendar days for cardholder-initiated transactions in a card-absent environment, while qualifying card-absent transactions carrying an extended-authorization indicator can have a 30-calendar-day timeframe.

Visa also publishes country-specific exceptions; for example, its current rules contain different processing timeframes for certain domestic transactions in India.

Those numbers are Visa-specific rule examples, not universal checkout settings.

Mastercard publishes its own Transaction Processing Rules and cautions on its rules page that standards can change and that official standards control where differences exist.

The publicly accessible transaction-processing document describes different timing treatment depending on authorization classification and transaction circumstances rather than a universal network-wide e-commerce setting.

Processor configuration can be narrower still. Shopify, for example, says the authorization period depends on the payment provider and currently gives seven days as an example for Shopify Payments.

WooPayments separately documents a seven-day capture period for its own manual-capture workflow. That is a WooPayments limitation, not proof that every e-commerce authorization everywhere lasts seven days.

Authorization aging table

Transaction situation	Window to verify	What the merchant should do
Standard online card order	Current network + processor authorization data	Capture eligible shipped value within the supported lifecycle
Split shipment	Remaining authorization validity before every later shipment	Confirm another capture can still be submitted
Long backorder	Current authorization status before release	Reauthorize when required
Preorder	Payment strategy designed for fulfillment date	Avoid assuming checkout authorization survives until launch
Qualifying extended-authorization use	Network/provider eligibility and transaction-specific expiry	Use only when properly supported
Vertical such as lodging/rental	Applicable vertical rules	Do not apply ordinary retail assumptions

Mastercard maintains its own authorization and clearing requirements rather than inheriting Visa’s timing model. Its current Mastercard Transaction Processing Rules also contain specific transaction-linking requirements when multiple authorizations relate to a single transaction, reinforcing why reauthorization and clearing records should remain tied to the original commercial order.

What Happens When an Authorization Goes Stale

Imagine:

Monday: order authorized.

Tuesday: first item ships.

Several weeks later: backordered item becomes available.

A fulfillment system that simply sends another capture request without checking authorization state is treating the original authorization as perpetual. It is not.

Depending on the network and processing stack, a late capture can result in different outcomes:

• the gateway refuses to submit it;
• the processor rejects it;
• the transaction can no longer be captured because the provider already canceled the authorization;
• the transaction reaches clearing but no longer matches a valid authorization as expected;
• the transaction may receive different pricing or fee treatment;
• a released cardholder hold means funds are no longer reserved;
• or the merchant may create authorization-integrity problems.

For example, Stripe states that when its authorization expires before capture, the reserved funds are released and the PaymentIntent becomes canceled.

WooPayments similarly says that after its documented authorization window expires, the held amount is released and the merchant can no longer capture it through that authorization.

The key operational lesson is not “try the capture anyway.” It is:

authorization age must become a prerequisite for fulfillment approval.

Multiple Captures on One Order

The phrase multiple captures one order describes two very different payment architectures.

True Multi-Capture Support

With true multicapture:

1. The merchant authorizes the order.
2. Shipment 1 triggers a partial capture.
3. The processor leaves the appropriate remaining amount available.
4. Shipment 2 triggers another capture.
5. The final capture closes the remaining authorization.

Stripe’s multicapture implementation, for example, supports successive captures against an eligible PaymentIntent and uses a final_capture control so a merchant can indicate that a partial capture should not release the remaining authorization.

Adyen similarly describes one authorization followed by multiple captures and notes that its multicapture capability may require enablement.

Shopify currently supports multiple partial captures only where the payment provider supports them, with additional Shopify Payments capabilities tied to specified plans/configurations. Shopify explicitly warns that not all providers support multiple capture requests.

One-Capture-Per-Authorization Setups

Some systems allow a partial capture but treat that first capture as final.

WooPayments provides a particularly clear example. Its documentation says a merchant can capture less than the original authorized amount, but only once; after a partial capture, the uncaptured difference is released and cannot be captured later under that authorization.

The WooCommerce Stripe extension documents the same one-capture behavior for that integration.

That means this sequence is unsafe:

$300 authorization → capture $120 → assume $180 remains available → ship second parcel → discover authorization was closed.

The better architecture for a one-capture setup is:

$300 authorization → capture first shipment according to supported behavior → obtain a new valid authorization for the later shipment → capture that authorization when shipment 2 goes out.

Multi-capture versus reauthorization

Setup	First shipment	Later shipment	Main risk
True multicapture	Partial capture, keep remaining authorization open	Another capture if authorization remains valid	Authorization ages before later fulfillment
Single capture	First capture closes/releases remainder	Obtain another valid authorization	Merchant assumes remainder still exists
Long backorder	Capture shipped merchandise	Reauthorize later amount when needed	Original authorization becomes stale
Separate auth per fulfillment	Authorization tied to each ready shipment	New auth for subsequent shipment	Requires clean customer credential/consent architecture

How to verify multi-capture support

Do not infer multicapture capability from a dashboard button labeled “Capture.”

Verify all of these:

• gateway documentation;
• processor/acquirer documentation;
• supported networks and payment methods;
• account or pricing-plan eligibility;
• API capture behavior;
• whether a partial capture automatically releases the balance;
• whether a final capture flag or equivalent exists;
• OMS integration behavior;
• and whether the platform can associate each capture with a separate fulfillment.

A gateway may support multicapture at API level while an e-commerce plugin built on top of it exposes only one capture.

Capturing the First and Second Shipments Correctly

The first shipment should begin with a fulfillment event, not a generic payment cron job.

Suppose a $300 order contains:

• Item A: $80
• Item B: $40
• Item C: $180

Items A and B ship together.

Before capturing $120, the system should determine whether the $120 includes all allocated taxes, discounts, shipping, duties, or other order-level adjustments that the platform expects to settle at that stage.

A robust event flow is:

Fulfillment created → lines confirmed → payment allocation calculated → authorization state checked → capture submitted → capture confirmed → ledger updated.

The system should not mark the $120 as paid merely because the API request was sent. It should wait for the gateway’s successful response or trusted asynchronous confirmation according to the integration.

Before shipment 2, repeat the validation rather than assuming the first shipment’s payment state still applies.

Check:

1. Remaining amount due.
2. Amount already captured.
3. Remaining authorization amount, if any.
4. Authorization age/current processor status.
5. Whether another capture is supported.
6. Whether the next amount can legally and operationally be associated with that authorization.
7. Whether a reauthorization is required.

Only then should the $180 shipment be released.

How to Reauthorize Delayed Shipments Correctly

Reauthorization card rules become central when fulfillment extends beyond the usable life of the original authorization.

Visa’s developer documentation explicitly identifies split or delayed e-commerce shipments as a common reauthorization scenario when fulfillment extends beyond Visa’s authorization validity limit.

The important point is that reauthorization is not an arbitrary retry strategy. It is a transaction-lifecycle action taken when a later fulfillment event needs fresh approval.

A practical workflow is:

1. Check the unfulfilled balance: Do not automatically reauthorize the full original order.
2. Check the current authorization: Determine whether an existing valid authorization still supports the remaining capture.
3. Handle unused authorization appropriately: If the previous authorization should be reversed, voided, or otherwise released under the relevant network/provider procedure, do that using the linked original transaction data.
4. Request authorization for the remaining shipment amount.
5. If approved, retain the new authorization identifier.
6. Capture when the goods reach the configured fulfillment milestone.
7. If declined, place the shipment on payment hold.
8. Link the old authorization, new authorization, shipment, and capture to the same commercial order.

This is particularly important for backorders. A backordered SKU should not sit indefinitely attached to an aging authorization with no system alert.

Reauthorization vs. incremental authorization

Incremental authorization is related but not interchangeable with reauthorization.

An incremental authorization increases an existing authorized transaction amount where the network, merchant category, processor, transaction model, and integration support it.

A reauthorization obtains fresh authorization associated with a transaction or later fulfillment need when the prior authorization can no longer appropriately support it.

Mechanism	What it does	When it fits	Key limitation
Partial capture	Settles less than the approved amount	Goods ship in stages	Does not extend authorization indefinitely
Multicapture	Permits several captures against one authorization	Eligible split shipments	Provider/network support required
Reauthorization	Obtains renewed/fresh approval	Authorization has aged or no longer supports later fulfillment	Can decline
Incremental authorization	Adds authorized value to a supported transaction	Estimated amount increases in eligible transaction types	Not universally available for ordinary online retail
New standalone authorization	Approves a later amount separately	Processor architecture requires a new transaction	Must be reconciled to original order

Visa’s current rules specifically prescribe requirements for transactions using estimated and incremental authorization indicators and transaction identifiers. Visa also publishes an Estimated and Incremental Authorization and Reversal Processing Guide.

The critical caution for ordinary retailers is that “incremental authorization exists” does not mean “use incremental authorization whenever an e-commerce cart changes.” Eligibility and implementation depend on the payment arrangement.

Stripe similarly treats incremental authorization, multicapture, overcapture, and extended authorization as separate flexible-payment features rather than synonyms.

What to do if the second authorization declines

A reauthorization decline changes fulfillment state.

The order can remain commercially valid, but the warehouse should not treat the later inventory as payment-approved.

A safe flow is:

Reauthorization declined → payment hold → customer notification → secure payment-update path → new approved payment state → release shipment.

Do not repeatedly submit the same request merely hoping that it eventually approves. Network and processor retry rules can restrict resubmission behavior, and blind retries increase customer frustration and transaction noise.

Do not convert the decline into an employee manually typing card details from stored customer-service notes.

The customer should instead receive an approved, secure mechanism for updating or confirming payment.

The original order history must remain intact. Finance should still be able to see:

• original $300 order;
• first $120 captured;
• original authorization lifecycle;
• failed $180 reauthorization;
• replacement payment authorization;
• final $180 capture.

Authorization Reversals and Unused Amounts

An authorization reserves customer spending capacity. If part of that amount will no longer be used, merchants should not leave the authorization open merely because it will eventually disappear.

Visa’s current public rules contain explicit authorization-reversal requirements and identify timeframes tied to the relevant authorization lifecycle. Visa’s Merchant Resource Library also maintains specific guidance on authorization reversals.

Platform behavior varies. WooPayments says canceling an unused authorization releases the associated hold, and Adobe Commerce Payment Services says a void releases funds being held on an authorization before capture.

Consider a $300 order where $120 ships and the remaining $180 is canceled.

The merchant’s ledger should not look like:

Authorized $300 → Captured $120 → nothing else.

Depending on the network and processing arrangement, the remaining unused authorization should be properly released/reversed/voided through the supported transaction lifecycle.

That gives the issuer better information, reduces unnecessary customer holds, and creates cleaner authorization records.

Misuse-of-Authorization and Stale-Auth Fees

A misuse of authorization fee should be treated as a symptom of transaction-lifecycle problems, not merely as a mysterious statement expense.

Processors and acquirers can use terminology such as authorization misuse, stale authorization, integrity-related charges, or similar labels depending on network and statement presentation. Merchants should not assume every statement uses the same fee name.

Elavon, for example, publicly documents a “misuse of auth fee” in its Fusebox e-commerce materials when non-zero authorizations are left unsettled outside specified conditions. Its documentation also describes transaction-date and shipment-date requirements for its particular processing environment.

That is useful evidence that these costs exist, but its published conditions should not be generalized to every processor.

Common operational conditions worth investigating include:

• approved authorizations that never generate a matching clearing transaction;
• unused amounts that are not reversed appropriately;
• clearing submitted too late for the authorization lifecycle;
• authorization and clearing data that fail to link correctly;
• OMS behavior that permits capture long after warehouse delay;
• or a processor integration that does not send expected lifecycle indicators.

Where those fees appear on the statement

Depending on your acquirer and statement format, related costs may appear among:

• network pass-through charges;
• authorization-related fee lines;
• integrity or data-quality fees;
• processor adjustments;
• authorization misuse entries;
• clearing-related fees.

Do not diagnose the fee only from its label.

Ask the processor for:

1. Network/card brand.
2. Fee code.
3. Transaction IDs affected.
4. Authorization dates.
5. Clearing/capture dates.
6. Reasons the transactions qualified for the charge.
7. Whether reversals were expected.
8. Whether the gateway submitted required linking data.

Misuse fee audit checklist

Each month, compare:

• total authorization count;
• total captured authorization count;
• total reversed authorization count;
• expired/open authorization count;
• partial-capture orders;
• multicapture orders;
• reauthorizations;
• shipped-but-not-captured orders;
• canceled lines with unused authorization;
• stale-authorization fee lines;
• authorization/clearing mismatches.

A useful finance report should also track:

authorization-to-capture age, number of delayed fulfillments, reauthorization volume, reversal rate, and misuse/stale-auth charges.

Do not create a generic benchmark such as “your reversal rate should always be X%.” The correct level depends on the merchant’s fulfillment model.

Why Authorization Misuse Can Be a Configuration Problem

When a fee repeats month after month, look upstream.

Suppose the processor identifies 400 authorization-integrity exceptions. The payments team should not limit its investigation to the monthly statement.

Trace the underlying orders.

You may discover that:

• the OMS never sends reauthorization events for backorders;
• the store authorizes every order but warehouse fulfillment occurs well after authorization deadlines;
• a partial capture closes the authorization but the OMS believes a balance remains;
• an order cancellation reduces inventory but fails to void authorization;
• the gateway receives duplicate capture messages after fulfillment webhooks are retried;
• or the platform auto-captures while a separate fulfillment app also sends a capture.

Shopify specifically warns that simultaneously using Shopify automatic capture and a third-party app that also automatically captures payment can cause conflicts and unexpected behavior.

The statement fee is therefore the final financial artifact of an earlier state-management failure.

How Pending Holds and Staged Charges Look to Customers

A split shipment can be technically correct and still look suspicious to a cardholder.

Consider a $250 order:

Checkout: customer sees a $250 pending authorization.

Shipment 1: $100 posts.

Shipment 2: $150 posts later.

Depending on the issuer and payment lifecycle, the original pending authorization may disappear, change, coexist temporarily with a posted transaction, or be displayed differently in online banking.

Issuer displays are not standardized enough for a merchant to promise that the customer will always see one exact sequence.

That uncertainty is why customer messaging matters.

Order confirmation can say that the customer’s card may be charged as items ship.

The first shipment email can identify the amount charged for that shipment.

The second shipment email can identify its amount separately.

The final invoice can show:

Event	Amount
Order total	$250
Shipment 1 charge	$100
Shipment 2 charge	$150
Total captured	$250
Remaining balance	$0

Support staff should also understand the difference between a pending authorization and a posted capture. Otherwise they may unnecessarily refund a legitimate transaction because they misinterpret the cardholder’s screenshot as evidence of a duplicate charge.

Support teams that handle customer questions about pending holds, posted charges, and disputed transactions should also understand the broader workflow for dealing with payment disputes, especially when a customer mistakes staged captures for duplicate billing.

Capture-on-Shipment Configuration for Common Platforms

A capture on shipment configuration is not merely one switch. It depends on the platform, payment gateway, plan, payment method, and sometimes an extension.

Shopify

Shopify currently supports manual payment capture and partial capture. Its documentation says multiple partial captures are possible where the payment provider supports them; Shopify Payments multicapture availability also has plan and configuration conditions.

Shopify also currently offers automatic capture per fulfillment on Shopify Plus. Under this configuration, payment is authorized at checkout and payment for qualifying line items and taxes is captured as fulfillment occurs, subject to authorization timing and provider support.

Shopify documents several exceptions and says that if the payment method does not support multiple partial captures, the entire order may be captured on the first fulfillment.

That last detail is critical. “Capture per fulfillment” should not be assumed to imply identical multicapture behavior for every payment provider.

Adobe Commerce / Magento

Adobe Commerce Payment Services currently supports Authorize as a payment action and explicitly states that Payment Services supports partial captures, including capturing individual parts of an order at different times.

Adobe also documents voiding uncaptured authorization amounts and describes cancellation behavior for uninvoiced orders.

Other Adobe Commerce payment modules can behave differently. The platform’s PayPal integrations, for example, have their own authorization and multi-invoice/capture models.

Therefore, “Adobe Commerce supports partial capture” should not be interpreted as “every Adobe payment extension supports identical multicapture semantics.”

WooCommerce

WooCommerce itself supports many gateways, so merchant capability is largely determined by the installed payment extension.

WooPayments currently permits manual authorization and partial capture, but its own documentation says there is only one capture per order in that workflow. A partial capture releases the remaining amount, preventing a later second capture against the same authorization.

The official WooCommerce Stripe extension similarly documents a one-capture-per-order model for its authorize-and-capture-later configuration.

Other WooCommerce gateways may behave differently, which is precisely why the payment extension—not simply “WooCommerce”—must be reviewed.

Platform comparison

Platform / configuration	Authorize only?	Partial capture?	Multiple captures?	Fulfillment trigger?
Shopify	Yes	Yes	Supported only in qualifying provider/plan configurations	Per-fulfillment automation available under documented Shopify conditions
Adobe Commerce Payment Services	Yes	Yes	Partial invoicing/capture supported; verify exact payment service/integration behavior	Depends on Commerce workflow/integration
WooPayments	Yes	Yes	No for the documented manual-capture workflow; one capture closes remainder	Manual capture workflow
WooCommerce Stripe extension	Yes	Yes	Documentation describes one capture per order	Depends on order-status/integration workflow

Important: These entries reflect the named current documentation, not every processor or plugin available on each commerce platform.

Gateway versus platform responsibility

When split fulfillment fails, identify the failing layer.

Platform: owns customer order and commerce state.

OMS/WMS: creates fulfillment and shipment events.

Gateway: exposes authorization/capture functions.

Processor/acquirer: submits transactions into the card-network environment.

Card network/issuer: applies network processing and authorization rules.

A warehouse problem may therefore appear as a payment problem even though the processor worked exactly as configured.

Backorders, Preorders, Cancellations, Gift Cards, and Multiple Warehouses

Backorders

Backorders are the classic authorization-aging problem.

Do not let the original checkout authorization remain the only payment plan for a product expected to ship significantly later. Track authorization age, establish a reauthorization decision point, and notify customers when payment timing changes.

Preorders

Preorders can exceed ordinary authorization lifecycles entirely.

A product ordered months before release may need a different delayed-payment architecture rather than a checkout authorization that the merchant hopes will survive until launch.

The transaction should be designed around the actual future fulfillment date and current processor rules rather than around indefinite authorization retention.

Multiple warehouses

One order may generate three fulfillment events from three locations.

Every warehouse can send fulfillment events, but none should own the order’s payment balance independently.

Central payment coordination should enforce:

total captured ≤ valid payable order amount.

Partial cancellation

Suppose the original order is $300, $120 already shipped, and the customer cancels the remaining $180.

Update the unfulfilled balance to zero and handle the unused authorization amount according to the supported reversal/void procedure. Do not allow a late warehouse event to capture the canceled product.

Gift cards, store credit, and discounts

Split tender makes shipment allocation harder.

A $300 order might include:

• $50 gift card;
• $20 promotion;
• $230 card amount.

The system needs a deterministic rule for allocating these amounts across shipments. Otherwise the OMS may believe shipment 1 is worth $120 while the payment layer tries to capture $140.

The objective is not to invent a tax or accounting rule. It is to ensure the order platform, payment gateway, and financial ledger use the same allocation.

Avoiding Duplicate Charges in Split Shipments

Split fulfillment increases event volume, which increases duplicate risk.

A capture service should protect against:

• repeated warehouse webhooks;
• API timeouts;
• retry jobs;
• fulfillment edits;
• duplicate shipment-created events;
• and support agents manually repeating an uncertain capture.

Four controls are especially useful:

1. Unique shipment identifier.
2. Unique capture/request identifier.
3. Idempotent processing where supported.
4. Order-level remaining-balance validation immediately before capture.

A timeout should not be interpreted as a decline.

Before retrying an uncertain capture, query transaction state or process the gateway’s confirmed callback/webhook according to its integration model.

PayPal’s developer documentation, for example, explicitly notes that a missed successful response can cause a merchant to send a duplicate request, and recommends retrieving transaction status and using webhooks to avoid redundant actions.

This principle applies broadly even though implementation syntax differs.

Building an Order-Level Payment Ledger

An order record should not contain only a field such as:

paid = true

That is insufficient for a split-shipment order.

Store or make reliably retrievable:

• order ID;
• original authorization ID;
• authorization date;
• capture deadline/expiry information where provided;
• authorized amount;
• shipment IDs;
• capture IDs;
• capture amount per shipment;
• cumulative captured amount;
• remaining payable amount;
• unused authorization amount;
• authorization reversal/void ID;
• reauthorization IDs;
• decline events;
• refund IDs;
• settlement references;
• and payment method/token reference where appropriate.

A representative ledger could look like this:

Event	Transaction ID	Amount	Order balance after event
Authorization	AUTH-1001	$300	$300
Shipment 1 capture	CAP-1001	$120	$180
Original auth reversal/closure	REV-1001	Variable/unused amount as applicable	$180 commercial balance
Reauthorization	AUTH-1002	$180	$180
Shipment 2 capture	CAP-1002	$180	$0

Do not interpret authorization amount as revenue. Authorization, capture, refund, and settlement are distinct financial states.

---

Tax, Shipping, and Discounts Across Partial Captures

A shipment-based capture needs an agreed allocation model.

Suppose:

• merchandise subtotal: $280;
• shipping: $10;
• tax: $30;
• discount: -$20;
• total: $300.

If shipment 1 contains half the goods, the platform may not necessarily capture exactly half of every order-level component.

Some systems allocate product-level discounts immediately but reserve shipping or certain fees for final fulfillment.

Shopify, for instance, currently documents specific behavior for capture-per-fulfillment: item-level discounts are already reflected in item subtotals, order-level discounts are spread across fulfillments, while remaining shipping, fees, and duties are captured when the entire order is fulfilled under the documented workflow.

Do not manually impose that Shopify logic on another platform.

The requirement is consistency:

commerce order allocation = capture request allocation = accounting allocation.

If those numbers differ, finance may be unable to tie processor deposits back to the order even though the total eventually matches.

Partial Refunds After Split Capture

A refund applies to money that was actually captured.

It does not apply to an uncaptured authorization amount.

Suppose:

• capture 1: $120;
• capture 2: $180;
• customer returns a $40 item from shipment 1.

Where supported, map the $40 refund to the relevant capture or transaction lineage instead of creating an unrelated refund record.

This makes dispute evidence and reconciliation substantially clearer:

Order → Shipment 1 → CAP-1001 → REFUND-1001

rather than:

Order → unidentified $40 credit.

Maintaining that transaction lineage also makes evidence collection easier if a refund later turns into a dispute. Merchants can strengthen that process by following a structured approach to handling chargebacks and preserving shipment, capture, refund, and customer-communication records together.

How to Reconcile Split-Shipment Payments

Split-shipment reconciliation should follow the transaction chain:

Order total → authorization(s) → capture 1 → capture 2 → reversal(s) → refund(s) → settlement deposits.

Each component serves a different purpose.

For a $300 order, a completed reconciliation might be:

Payment state	Amount
Original order	$300
Original authorization	$300
Capture 1	$120
Capture 2	$180
Total captured	$300
Refunds	$0
Net captured	$300
Remaining customer balance	$0

Authorization values should not be added to captured amounts as if both were sales. Otherwise the same order appears to generate $600 of payment activity.

The settlement side then needs to tie each capture into the processor batch or settlement records and ultimately to the bank deposit after applicable fees/adjustments.

Daily exception report

A strong daily report flags:

• shipped but not captured;
• captured but not shipped;
• fulfillment created with expired authorization;
• authorization amount lower than shipment amount;
• duplicate capture IDs;
• multiple captures exceeding order balance;
• open order with authorization nearing its transaction-specific deadline;
• reauthorization declined but shipment released;
• canceled item still included in remaining capture;
• unused authorization not handled;
• refund not linked to a capture;
• capture confirmed at gateway but absent from commerce order;
• fulfillment completed but payment status still authorized.

This report catches operational failures before the monthly statement does.

Practical Split-Shipment Payment Workflow

A production workflow can follow these sixteen steps.

1. Authorize the order at checkout: Store the processor’s authorization reference and transaction metadata.
2. Record authorization timing information: Where the gateway provides transaction-specific expiry/capture-deadline data, store it.
3. Wait for an actual fulfillment event: Do not capture merely because the order was accepted.
4. Calculate shipment 1’s payment amount: Include the platform’s correct allocation of products, discounts, tax, shipping, duties, or fees.
5. Confirm multicapture behavior: Know whether partial capture preserves or releases the remainder.
6. Capture shipment 1.
7. Record the capture confirmation: Link it to both order and shipment.
8. Update remaining commercial and authorized balances.
9. Monitor authorization age while the remaining items are open.
10. Before shipment 2, validate the authorization again.
11. Reauthorize the remaining amount when the existing authorization cannot support the shipment.
12. If the reauthorization declines, hold fulfillment and provide a secure payment-resolution path.
13. Capture shipment 2 when the applicable fulfillment milestone occurs.
14. Handle unused authorization through the supported reversal/void process where applicable.
15. Reconcile authorization, captures, refunds, and settlement to the order.
16. Review stale-authorization/misuse exceptions and recurring statement fees.

Common Partial Capture and Reauthorization Mistakes

Mistake	Why it creates risk	Better approach
Assuming every gateway supports multicapture	First partial capture may close the authorization	Confirm gateway and processor behavior
Capturing the whole order with shipment 1	Customer pays for goods not yet fulfilled	Capture according to configured fulfillment model
Leaving backorders on an aging authorization	Later capture may fail or mismatch	Monitor age and reauthorize when required
Assuming one universal authorization window	Networks and processors differ	Use current network/provider rules and transaction data
Not handling unused authorization	Customer hold may remain longer and lifecycle data becomes messy	Reverse/void unused amounts where required/supported
Blindly retrying a declined reauthorization	Can violate processor/network retry controls and frustrate customers	Put order on payment hold
Treating timeout as decline	Creates duplicate captures	Verify transaction status first
No shipment-to-capture mapping	Reconciliation and refunds become difficult	Store capture ID against shipment ID
Independent warehouse captures	Can overcapture the order	Centralize order-level payment state
Treating partial authorization as partial capture	Wrong transaction architecture	Separate issuer approval logic from settlement logic
Assuming platform feature equals gateway feature	Integration may expose narrower behavior	Verify the exact payment extension/provider
Poor customer messaging	Staged payments appear to be duplicates	Explain shipment-linked charges before fulfillment

Split-Shipment Payment Configuration Checklist

Before enabling partial shipment capture in production:

• Confirm authorize-only/manual-capture support.
• Confirm whether the exact gateway and processor support multiple captures.
• Confirm which card brands and payment methods are eligible.
• Determine whether a partial capture leaves the remaining authorization open.
• Record authorization ID and transaction-specific aging information.
• Capture only the value associated with the appropriate fulfillment milestone.
• Track remaining authorized and commercial balance separately.
• Monitor delayed fulfillment and backorders.
• Reauthorize later shipments when required.
• Do not release unpaid inventory after a reauthorization decline.
• Use secure customer payment-update flows.
• Reverse or void unused authorization amounts where required and supported.
• Prevent duplicate capture requests with unique transaction/shipment controls.
• Make capture processing idempotent where the gateway provides that capability.
• Tie capture IDs to shipment IDs.
• Tie reauthorization IDs to the original order.
• Tie refunds to captured transactions.
• Make tax, shipping, discount, store-credit, and gift-card allocations consistent.
• Explain staged charges in order and shipment communications.
• Give support agents visibility into authorization and capture history.
• Reconcile all captures to the original order.
• Reconcile captures to processor settlement and bank funding.
• Audit stale-authorization and misuse-related statement lines.
• Test the full workflow before production rollout.

Test cases worth running

Your staging or provider-approved test environment should include:

1. One authorization, two successful captures.
2. A gateway that closes the authorization after first capture.
3. Delayed second shipment requiring reauthorization.
4. Reauthorization decline.
5. Customer updates payment after decline.
6. Partial order cancellation.
7. Unused authorization reversal/void.
8. Partial refund after capture.
9. Duplicate fulfillment webhook.
10. Capture API timeout followed by transaction-status lookup.
11. Two warehouses attempting fulfillment simultaneously.
12. Order-level discount split across shipments.

Do not use uncontrolled live customer cards for integration testing.

Frequently Asked Questions

Conclusion

Partial capture is not partial authorization. In a split-shipment workflow, partial capture is the mechanism that lets payment settlement follow the goods actually being fulfilled, while authorization determines whether funds have been approved and reserved.

The operational challenge is that authorizations are temporary. A merchant cannot assume that an authorization obtained when an order is placed will still support a backordered shipment later. Authorization windows vary by network, transaction type, processor, region, and integration, while multicapture capability varies by gateway and platform.

A durable split-shipment architecture therefore connects fulfillment and payment state at every step: verify the authorization, calculate the shipment amount, capture only through a supported mechanism, reauthorize delayed merchandise when necessary, place declined shipments on hold, properly handle unused authorization amounts, and reconcile every transaction ID back to the order.

Stale-authorization or misuse-related fees deserve the same operational treatment. Repeated fee lines can indicate that warehouse timing, gateway behavior, and authorization management are out of sync.

Finally, communicate staged charges clearly. Customers are much less likely to interpret legitimate split-shipment captures as duplicate billing when order confirmations, shipment emails, and support systems accurately show what was authorized, what has shipped, and what has actually been charged.
